Control Cable

What do we mean by Control Cables?

While power cables are used for the transfer of energy to the equipment from the power source, Control Cables are designed for signal transmission, measurement, control, and regulation in industrial process automation.

Multi-conductor cables are utilized in industrial automation and instrumentation operations, these are also known as control cables. Control cables can be used to monitor and govern automated process communications. Control cables are usually insulated by a foil, braid, or a mix of the two. When picking a control cable, flexibility is paramount. It's crucial to know whether the control cable needs to be flexible or would be constantly and consistently flexed. Cables that will be constantly and consistently flexed in process automation may require different constructions than cables that only need to be flexible in order to be routed appropriately in a product and still work.


Types of Control Cables by Sri Padmavathi Cables:

2X: XLPE Insulation
W: Round Steel Wire
F: Flat Steel Strip Armoured
WW: Double Flat Steel Strip Armoured
WA: Non-Magnetic Aluminum Round Wire Armoured
FA: Non-Magnetic Aluminum Strip Armoured
Y: PVC Outer Sheath


Padmavati Cables is one of the best Control Cables manufacturer, Control Cables exporter, Control Cables supplier in Mumbai, India. We are serve this Control Cables in all over countries. If you want this products please quote here!

Control Cable

Standards: IS 1554 Part-1, 1988, IS 7098 Part-1 1988, IEC 60502 & BS 5467

Voltage Grade: 1100V

Product Range: 61 Cores Armoured/ Unarmoured 1.5 / 2.5 sq mm

Codes: Constituent

2X: XLPE Insulation

W: Round Steel Wire

F: Flat Steel Strip Armoured

WW: Double Flat Steel Strip Armoured

WA: Non-Magnetic Aluminum Round Wire Armoured

FA: Non-Magnetic Aluminum Strip Armoured

Y: PVC Outer Sheathe

Technical Parameters

Number of Cores: 2 to 61 Core

Cross Section Area: 1.5 to 2.5 sq mm as per Specs.

Type of Conductor: Solid/ Stranded Copper

Class: 1 & 2 IS : 8130

Insulation: PVC/HR PVC/ XLPE IS: 5831, IS 7098 (P-1)

Inner Sheath: Extruded PVC (ST-1/ST-2 )

Type of Armouring: Galvanized Steel Round Wire/Flat Strip

Outer Sheath: Extruded PVC /FR /FRLS/ LSZH.( ST-1/ST -2)

Application: Digital Control & Monitoring, Information Systems, Industrial and Building Automation.

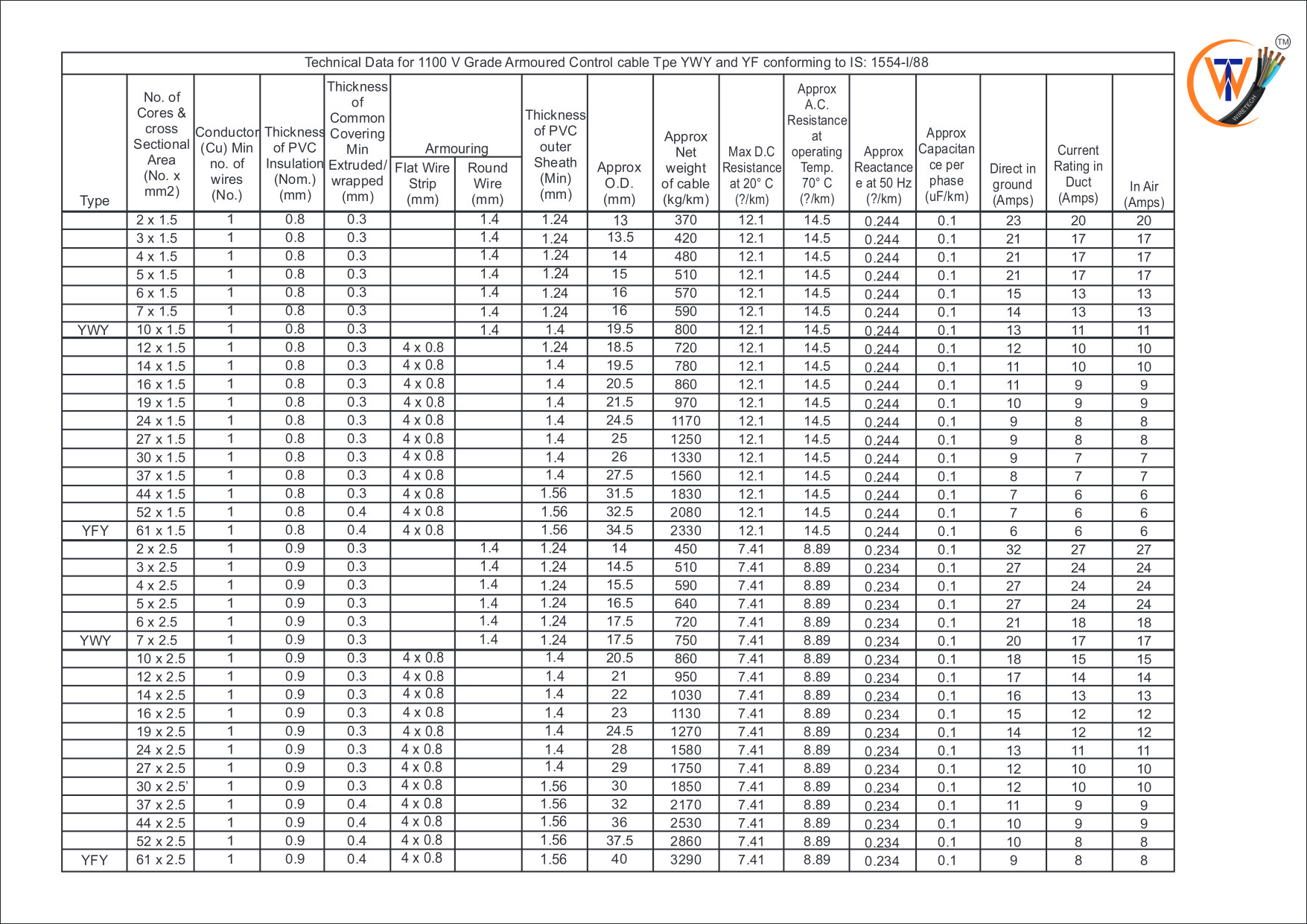

View Chart
