The use of IT and electronics has expanded dramatically as a result of the rising use of new technologies on a daily basis. Everyone is more aware of the internet and basic electrical technology nowadays, which has boosted the IT sector. PTFE is usually the material of choice when you need a high-temperature substance with good electrical resistance and mechanical qualities.
Polytetrafluoroethylene (PTFE) is a tough fluorocarbon polymer (plastic) that's often used to insulate cables and improve performance in high-performance applications. Because of its excellent fire, smoke, and chemical resistance, PTFE is often used in cables.
Because of the PTFE insulation, these cables can be utilized in potentially dangerous environments. Chemical and UV resistance is provided by the PTFE insulation.

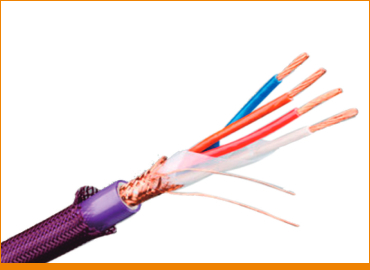

Sri Padmavathi Cables provides High density, High voltage PTFE Wires and Cables with a High Operating Temperature that ranges from -65°C to 260°C. These cables have low dielectric constant as well as Low Dissipation Factor (0.0003).
High Surface Resistance.
Fair Corona Resistance.
Inert to Chemical Attack.
Moisture Proof.
Flame Proof.
Inert to Fungus and Mould Growth.
Suitable for very wide frequency Range (DC to Above 10000 MHZ).
Excellent Flex Life and Totally unaffected by outdoors exposure to Unlimited Period.
• High Operating Temperature -65°C to 260°C.
• Low Dielectric Constant.
• Low Dissipation Factor (0.0003).
• High Surface Resistance.
• Fair Corona Resistance.
• Inert to Chemical Attack.
• Moisture Proof.
• Flame Proof.
• Inert to Fungus and Mould Growth.
• Suitable for very wide frequency Range (DC to Above 10000 MHZ).
• Excellent Flex Life and Totally unaffected by outdoors exposure to Unlimited Period.
Standards: MIL W / JSS 51034
Voltage Grade: Upto 1000V
Conductor: Silver / Nickel / Tin Plated/Bare Copper
Insulation: PTFE/FEP
Screen: Annealed Bare Copper (ABC) / Silver Plated Copper (SPC)
Outer Sheath: PTFE/FEP
Temperature Rating: -65 to +260°C
Heat Resisting Test: 290°C for 96 Hrs
High Voltage Test: Spark test/ Die Electric Test
Flammability Test: Flame test for 1 Minute
Cold Bend Test: (-65°C ) for 4 Hrs
Insulation Test: Core to Core High Voltage Insulation Testing.
Core to Braid High Voltage Insulation Testing
Application: Defence Equipment, Railways, Aeronautics, Radar, Satellites, Navigations, Atomic Energy, Telecommunication Equipment, Heat Sensing Leads etc.

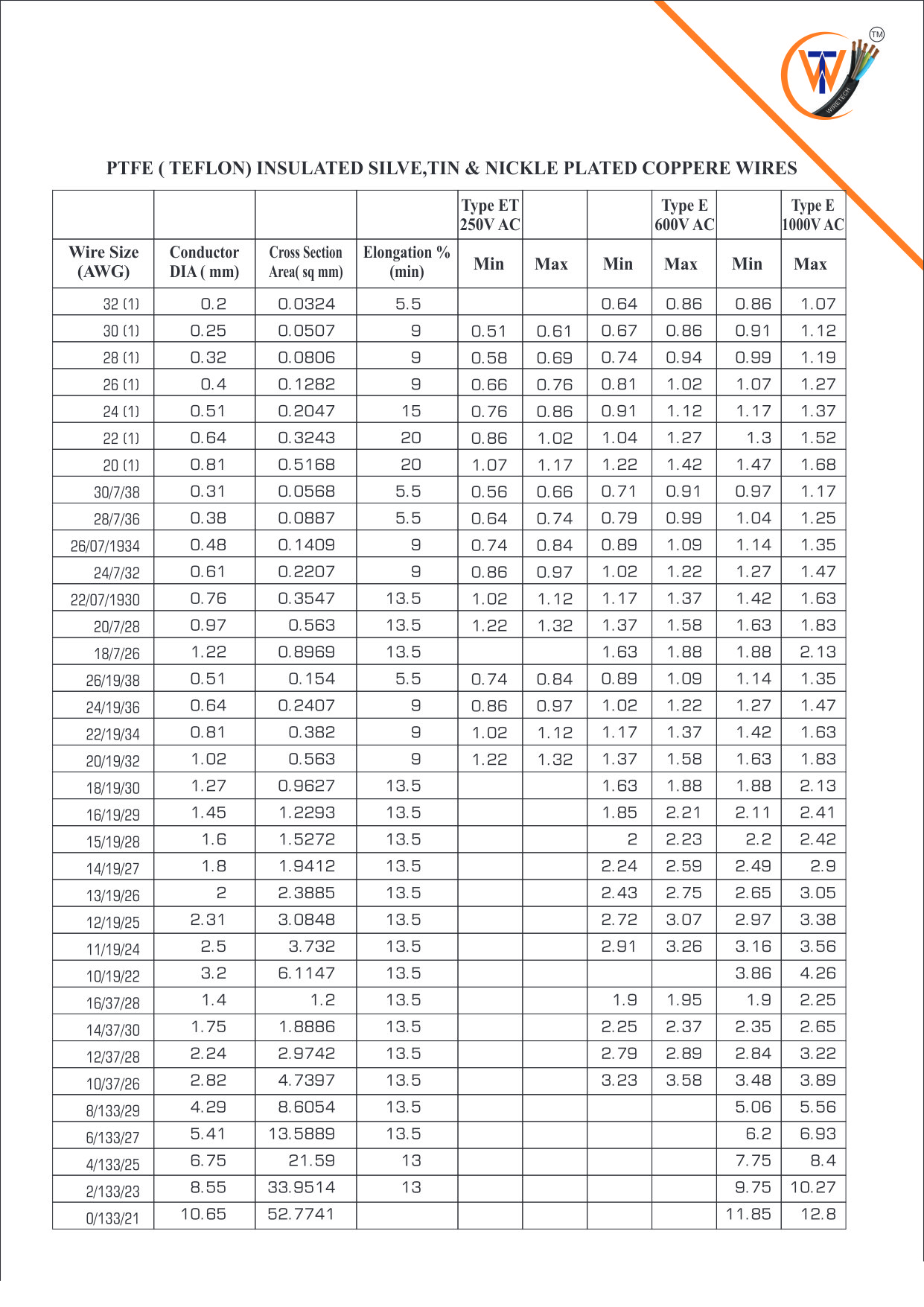

PTFE (TEFLON) INSULATED SILVE, TIN & NICKLE PLATED COPPERE WIRES: View Chart
