What are Optic Fibre Cables and why are they needed?
Optic fibre cables are of two types; single more and multi mode. These optic wires carry high amount of data at extremely high speed and are therefore useful for high speed data communication, voice and video networks.
Optic Fibre Cables Cater to High Speed Data, Voice and Video Networks. Manufactured to Withstand adverse Conditions and Provides Maximum Fibre Safety.
Our Cables Offers Good Surface, Chemical, Rodent and Water Resistance. Due to Use of High-class Raw Material. It Prevents EMI, Current Conduit and Increases Immunity to Lightening Strikes.

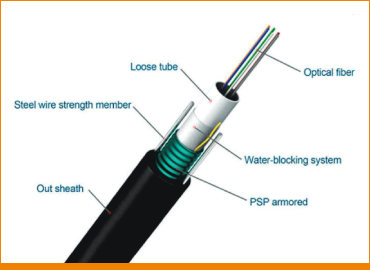

Cable Construction: CATV Unitube Design
No of Fibres Per Tube: 2, 4,6,8 12 upto 144 in single mode and multimode fibers.
Core Construction: S-Z, Stranded Multi Tube or Unitube.
Strength Element: FRP/ Aramoured Yarn/Glass Yarn/ Solid Steel Wire/ Steel Tape
Jacket Option: Single/Dual Jacket in UV Stabilized, HDPE/PU/LSZH/NYLON.
FRP: Fibre Reinforced Plastic
SW: Steel Wire
Operating Temperature: -20 to 70°C.
Cable Diameter (Nom.): 6 to 10mm +/- 0.25 mm
Weight of the Cable Kg/km: 35kg +/- 5kg
Standard Length in k.m: 1.5 to 3.5 Km
Max Bending Radius: 20D, D + Cable Diameter
Duct Cables
Direct Buried armoured Cables
Aerial Cables
Shallow Water Cables
Hybrid & Composite Cables
Tactical Cables
Tight Buffered Cables are Made for Premise Application. The Fibres Coated Typically 900 Microns are Flexible, easy to Handle and Simple to Install. They are Dry Core so the Connectors can be Terminated Directly on to the Fibre. Most Suitable for Backbone and Horizontal Applications.
Fibre to Core Counts: Upto 72 in Single Mode & Multimode Fibres
Core Construction: Distribution Style And Multi Core Rugged Break-out Style.
Strength Element: Aramid Yarn/Glass Yarn
Jacket Option: Single/Dual Jacket in LSZH.
Operating Range: 30°C to +70°C
Fibre to The Home (FTTH) Applications are Rapidly Increasing, we Belive for Inside Building Laying The Cables Design has to Focus Solely on Flexiblity Mechanical Reliability to Survive Such an Application. Small Cables Size, Light Cable Weight, Easy to Install are Typical Features of Flexi Blown Cables.
Generic Specifics: Fibre to Core Counts: Upto 2 to 12 Cores in Single Mode & Multimode Fibres
Core Construction: Zip Type Dry /Tight Buffered or Unitube.
Strength Element: FRP/Aramid Yarn/Solid Steel Wire
Jacket Option: Single/Dual Jacket in UV Stabilized, HDPE/PU/ LSZ/ Nylon Others.
Operating Range: 30°C to +70°C
Duct Blown Cables
Premise Cables
Fig-8 Style Construction
Composite Fibre Cables
